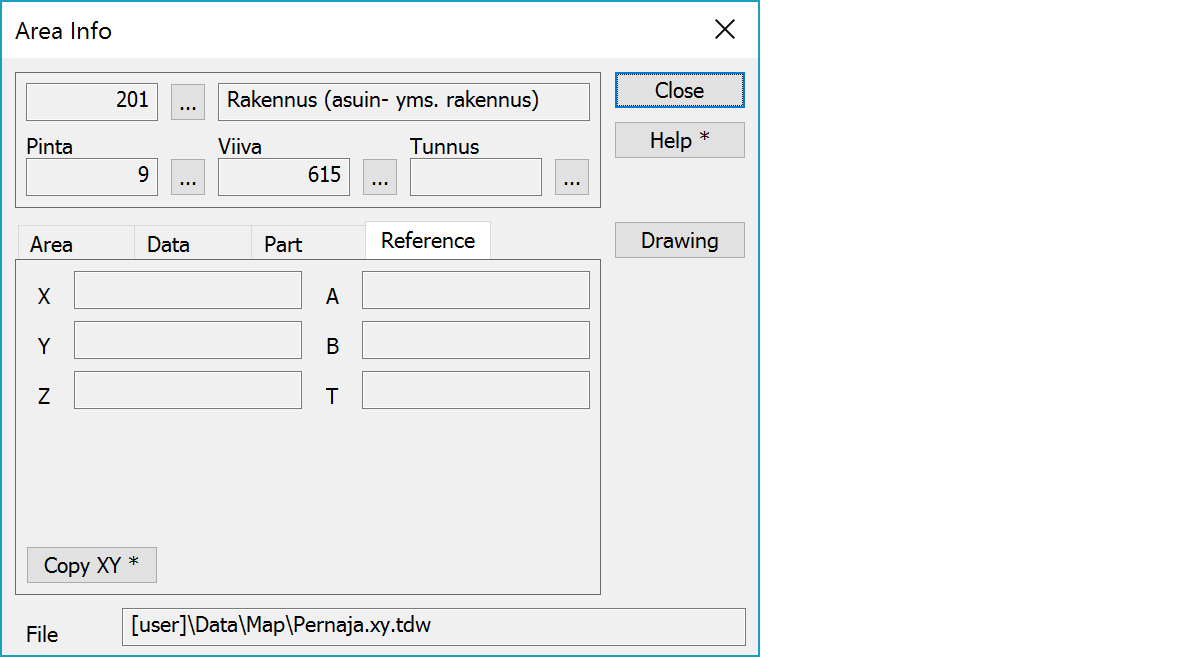

Area info Area infoDisplays area information. Area is activated by pointing inside it with the mouse. If there are several possible areas, the smallest one is selected.
Area reference point is a location where area attributes are shown. If it is not defined, location halfway between first two border line points is used by default. Reference point is not normally displayed and it cannot be picked by mouse. When viewing line area, it is displayed as a small circle.
Upper part fields display object type and three freely selectable attributes.
Area reference point coordinates. If these are defined, area attributes are displayed there. Otherwise area attributes are displayed beside the line.
Copies coordinates to the clipboard as a comma separated text. By default copies only X and Y. With the Shift-key the Z is also copied. With the Alt-key decimal separator comes from system settings and field separator is tabulator. This format can be pasted directly to Excel columns as numeric values.
Opens drawing data info. Number of defined drawing data items is displayed in parenthesis after button label.
The file element where the object belongs.
There are some special settings related to this function.
Settings affecting edit and calculation function behavior.
Defines which attributes are displayed first in the list. By default T1,T2,T3,T4,T5.
See also: Using special settings
